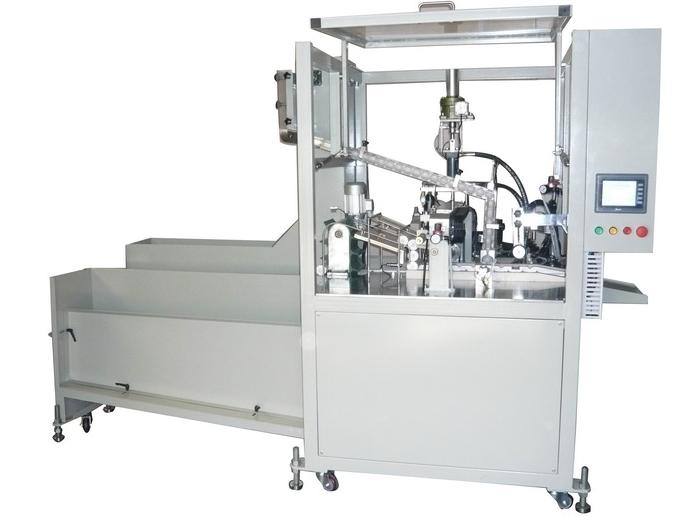

WT0003 Fully Automatic Silicone Sealant Filling Machine
Product Description
Functions:
1. Automatic deliver materials, include cartridges, sealant, plungers
2. Self filling sealant and insertting plunger
3. Automatic Counter
4. Breakdown Warning and Protecting Function
Configuration
Hydraulic extractor,
Hydraulic pressure station,
Delivering bottle part, Clamping bottle part,
Measuring part, Filling part, Leak proofing part,
Delivering lid part, Testing part,
Screwing lid part, Controlling part,
Praying & delivering part. Ink-jet printer(selected).
Technical parameter
Drum description: 200L metal drum
Packing vessel: 350ml plastic bottle (cartridge)
Working voltage: 3~50Hz380V
Total power: 6Kw. (no Air compressor)
Inputting barometric pressure: 0.7Mpa
Plate diameter: φ 570mm
Size and weight
Filling and closing machine 3300X1100X1500mm
Hydraulic silicone extractor 950X760X2500mm 570kg
Hydraulic pressure station 620X480X880mm 140kg
