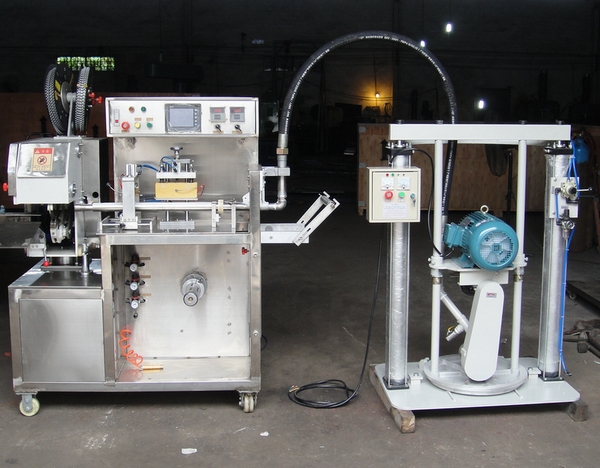

WT0004 Sausage Automatic Filling Machine mainly used in composite film tube packing of silicone sealant, polyurethane sealant and toher such paste materials. This machine has a horizontal, compact, small size structure, is easy to move, adopting advanced pneumatic and phototlectic monitoring as well as PLC intrlligent control and reliable mechanical structure technology. Mainly incudes the fore closely linked processess of flexible package tube making,PLC precision controlled filling, double end sealing forming and automatic cutting. Production is completely cutomatic and itegrated in to a single bodied piece of machinery. There is no need for manual intervention. This assures accurate filling weights and consistent batches can be attained, replacing previous segmented processes of tube making-filling-clipping, thus avoiding problems of cooperation between different working procedures. It imporves product quality and increases production efficiency, whilst reducing production loss and it products have excellent sealing performance.

Functions:
Automatic pulling of sausage film with adjustable tension

Automatic clipping (with Great Wall Clip) and cutting

Automatic code printing ( with user’s own jet printer)

Automatic adjustment of filling capacity

Adjustable heat-seal pressure and temperature

Automatic counting

Automatic/manual setting of filling parameters

Free choice between manual and automatic operation

Automatic alarm display and machine stop at failure

Specifications:

Power Capacity: 3-50MHz, 380V

Load Range: 300-600ml

Electric Motor Power: 3kw

Electric Control System: PLC + Human-computer interface

Sausage Film Size: Width 164mm, Thickness 0.05-0.08mm
