Product Description

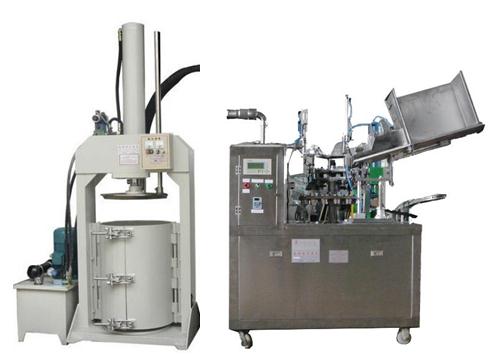

WT2002 AL Tube Silicone Full Automatic Filling Machine
Characteristic
The machine works steadily and simply with high efficiency and less energy. It is going by extracting, delivering tube, ration filling, sealing and printing, all these steps goes automatically.
Configuration:
Hydraulic extractor, hydraulic pressure station, measuring part, filling part, leakprooting part, delivering pipe part, clamping pipe part, sealing part, printing code part, control system
Working Voltage |
3-50Hz，380 Volt |
Power |
6Kw (not including air compressor) |
Working Air Pressure |
0,75Mpa |
Platen Diameter |
Ǿ 570 mm |
Loading Range |
25 ~ 100ml aluminous tube |
Original Container Size |
200 L Metal Pail
|
Production Efficiency |
15 ~ 40 tubes/minute |
Quantity Control Type |
Automatically |
Number of Tube position |
16 |
APPLYING TO |
Fluid sealant producer Ointment-like producerCosmetics industry Leechdom industry |
